| Brand Name: | Winroller |
| Model Number: | Winroller VECTOR-S100 DC Variable Frequency Motor Roller Driver |
| MOQ: | 1 |
| Price: | Contact Us |
| Packaging Details: | Wooden case |
| Payment Terms: | L/C, T/T |
Brushless DC motor
The motor consists of a permanent magnet rotor and a stator wound with coils. This type of motor has the advantages of
simple structure, high reliability, good stability, high efficiency, and strong adaptability, so it has been widely used.
Hall sensor
Since the brushless motor eliminates the carbon brush, the motor itself cannot run and needs to rely on an external
driver to run. The Hall sensor is a device installed inside the motor to feedback position signals to the driver.
LED
Light-emitting diodes are used to indicate the status of the drive system.
PNP/NPN
The logic level of the effective control signal: NPN means low level is effective, that is, it is effective when connected
to DC-; PNP means high level is effective, that is, it is effective when connected to DC+.
PLC
Industrial programmable logic controller.
Speed open/closed loop
Speed open loop, the drum speed decreases as the load increases;
Speed closed loop, when the load is within the rated torque of the drum, the drum speed does not change with the load.
ECO and BOOST
The electric C-type controller supports the electric roller ECO (energy saving) and BOOST (high torque) modes.
Vector frequency conversion
Field-oriented control is currently the best choice for efficiently controlling brushless DC motors.
*Three braking modes:Electronic brake, Free brake,Servo brake
*PNP and NPN adaptive:Give customers more options for control
*Acceleration and deceleration:Wide adjustment range, can achieve the time from 0.25 to 2S,16 accurate adjustment.
*3 speed gear:Convenient for customers to switch fast between acceleration and deceleration.
*Fail-safe restart:After the fault is rectified, the system automatically restarts within a certain period of time

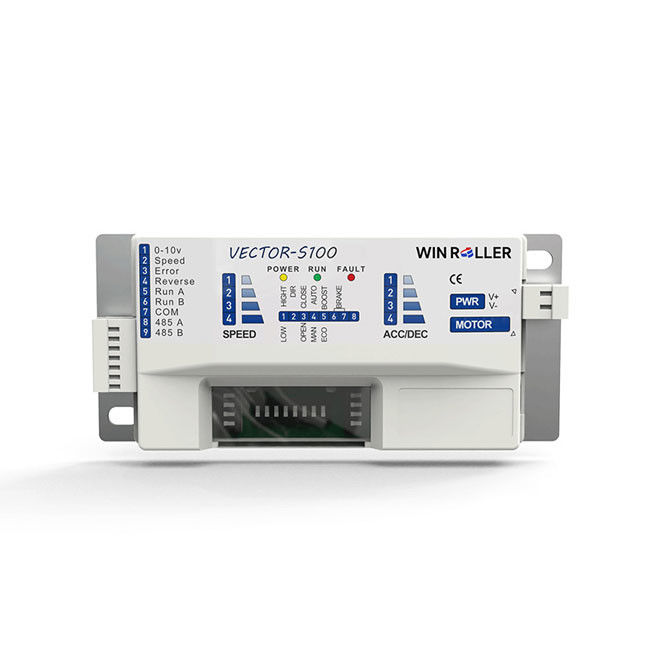

Layout of VECTOR-S100 DC Variable Frequency Motor Roller Driver
| Power terminal | DC power input |
| Signal terminal | Control signal input and error signal output, some functions are used in conjunction with DIP dialing |
| DIP dialing | Function dialing |
| LED | Power and status lights |
| Electric drum socket | Special electric roller nine-pin square head socket |
| Firmware upgrade port | Firmware upgrade socket |
| SPEED | Speed selection |
| ACC/DEC | Acceleration/deceleration time setting |
Driver Card External Interface
Motor Port
Power Supply Requirements
