Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line

Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line

Brand Name: Winroller
Model Number: Winroller Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Product Name:
Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line
Roller Material:
Steel Galvanization Stainless Steel
Application:
For Zero-Discharge Curve Conveyor Line
Grooves Position:
Roller End, Customized
Small End Diameter:
Φ50mm
Length:
Customized
Taper:
Tube Standard Taper 3.6° (taper Can Be Customized)
Turning Radius:
800mm
Supply Ability:
1000000/year
Highlight:

Anti Rust Tapered Conveyor Rollers

,

Assembly Line metal conveyor rollers

,

Anti Rust Assembly Line Roller

Product Description

Function of Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line

  • The turning conveyor is carried out by the speed difference of the tapered surface
  • 50mm modular plastic taper sleeve (250 ~ 850mm)
  • Beautiful and quiet, fast delivery, low cost
  • Anti-rust, easy to clean

Remark:
Standard 3.6° taper (turning radius is about 800mm),
Can not be anti-static, use at room temperature;



Application of Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line

Used for cone-roller type zero-discharge curve conveyor line



Technical Parameters of Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line

Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line

Plastic Tapered Conveyor Driven Roller With Anti Rust
Pipe diameter and wall thickness Axis center Sleeve length D1 D2
φ50*1.5 11hex,φ12/15 300 φ56 φ74.9
350 φ52.9 φ74.9
400 φ56 φ81.1
450 φ52.9 φ81.1
500 φ56 φ87.4
550 φ52.9 φ87.4
600 φ56 φ93.7
650 φ52.9 φ93.7
700 φ56 φ100
750 φ52.9 φ100
800 φ56 φ106.3
850 φ52.9 φ106.3

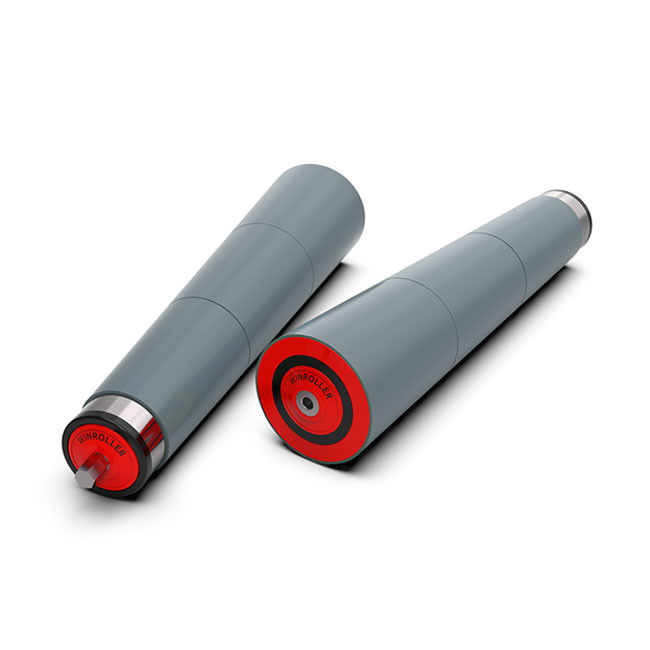

Feature Picture of Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line

Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor LinePlastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line
