| Brand Name: | Winroller |
| Model Number: | Winroller P100 Vector Inverter Drum Motor Drive Card |
| MOQ: | 1 |
| Price: | Contact Us |
| Packaging Details: | Wooden case |
| Payment Terms: | L/C, T/T |

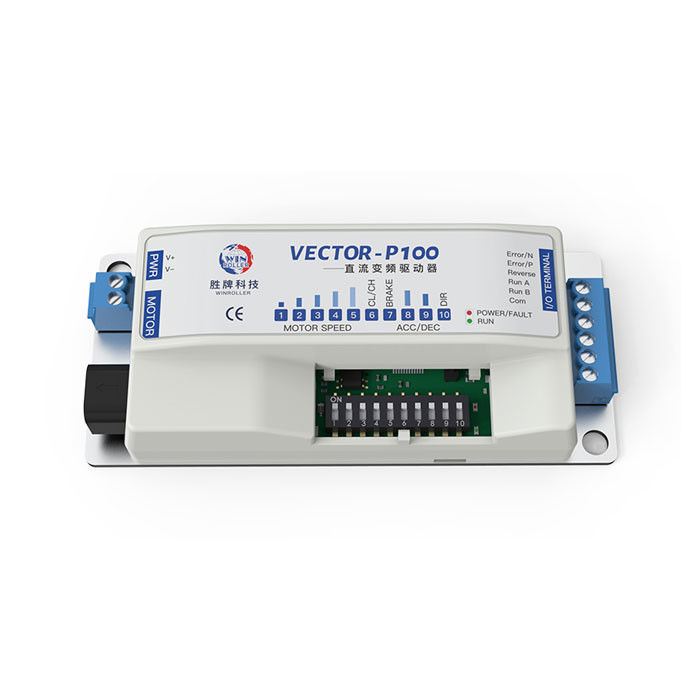

The P100 Vector Inverter Drum Motor Drive Card features FOC control for silent operation, enhanced torque under heavy loads, rapid startup acceleration, three braking modes, and extensive adaptability for various applications in compact spaces.
The P100 Vector Inverter Drum Motor Drive Card utilizes Field-Oriented Control (FOC) technology, enabling precise motor control without noise, which enhances operational efficiency and user comfort. It provides 8%-10% more torque under heavy loads compared to traditional square wave methods, allowing for better performance in demanding applications.
This drive card also boasts a high starting torque that facilitates quicker startup acceleration, ensuring smooth operation from a standstill. It supports three braking modes—electronic, free, and servo braking—offering flexibility for various operational requirements. The electronic braking mode generates a magnetic field to slow down the rotor, while the free braking mode allows the rotor to continue spinning until mechanical load stops it. The servo braking mode uses Hall effect sensors to maintain rotor position when the run signal is lost.
Additionally, the P100 offers PNP and NPN adaptive functions, enhancing compatibility with different control systems. Its adjustable acceleration and deceleration range can be finely tuned across 16 settings, allowing for precise control over speed changes, making it ideal for diverse industrial applications.
| Rated Voltage | DC 24V | Allowed Voltage Fluctuation | ±5% |
| Peak Input Current | 10A | Rated Power | 100W |
| Control Method | IO Signal | Braking Modes | Electronic Braking, Free Braking, Servo Braking |
| Acceleration and Deceleration Time | 5 to 35 seconds per revolution | Ambient Temperature | -10 to 40°C |
| Ambient Humidity | Below 85% | Drive Mode | Brushless DC Driver |
