Brand Name: | Winroller |
Model Number: | Winroller High Precision Lower Noise Direct Drive Drum Motor With Servo Controller |
MOQ: | 1stick |
Price: | Contact Us |
Packaging Details: | Wooden case |
Payment Terms: | TT, L/C |

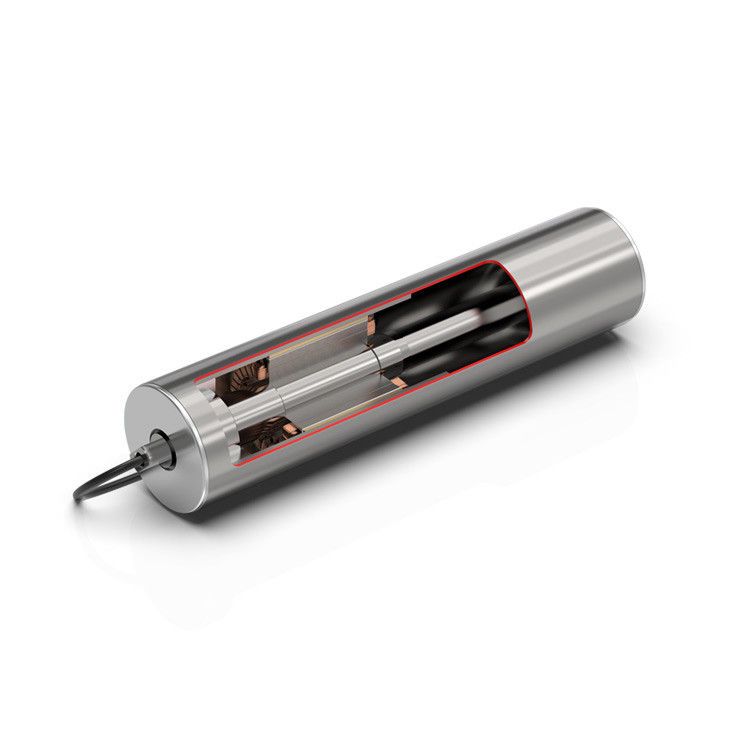

Our servo direct drive drum motor utilizes high-precision resolver servo control and is equipped with an inductive encoder as the position sensor. With no electronic components inside, it ensures excellent environmental adaptability, resists electrostatic threats, and achieves zero maintenance.
Motor Type | Permanent magnet servo motor | Diameter | 67mm |
Rated Voltage | DC48V | Power | 400W |
Load | 20kg, 35kg, 60kg | Speed range | 300 - 762r/min |
Features |
High precision, lower noise, direct drive, fast response | Application | Cross belt, weighing, sorting trolley |
Electric roller Motor parameters
Project | Specifications | Explain |
Motor Type | DC brushless motor(BL DC) | |
Motor Type | Outer rotor motor | |
Voltage | DC48V+-10% | |
Number of poles | 10 | 5 pairs of poles |
Rated power range | 400W | |
Speed range | 300-762r/min | |
Rated torque | 6N.m | |
Instantaneous maximum torque | 18N.m | Not more than 4 seconds |
Working system | Indirect working system 25% | Determined according to ambient temperature |
Parameters of Electric Roller Driver
Drive type | DC brushless servo driver | Explain |
Input rated voltage | DC48V | |
Driver rating | 400W | Intermittent working system 25% |
Drive size | 155mm*147.1mm*42mm | |
Communication modeA | rs485 | 38400bps,N,8,1 |
Power interface | Plug42000-6P (5557) | nylon ( PA66 ) ,UL94V-2/0 |
Terminal42000-21RT(5556) | Phosphor bronze (C5191) Wire gauge: 0.12~0.5mm2, 26~20AWG Outer diameter of wire: 1.1~1.9mm |
|
communication interface | Plug42000-10P(5557) | Nylon (PA66), UL94V-2/0 |
Terminal42000-01RT(5556) | Phosphor bronze (C5191) Wire gauge: 0.032~0.08mm2, 32~28AWG Outer diameter of wire: 0.5~1.0mm |
|
Motor interface | Special interface | |
Motor Hall interface | Special interface | |
Operating ambient temperature | -20-+85℃ | |
Operating ambient humidity | Less than 85% | No water drops and rain |
