Brand Name: | Winroller |

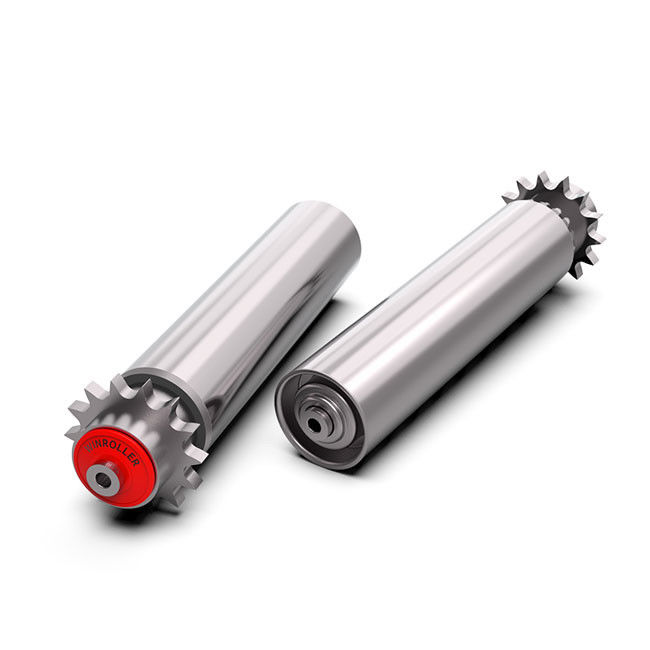

Model Number: | Winroller Galvanised Steel Conveyor Driven Roller Large Transfer Torque With Sprocket |
MOQ: | 1stick |
Price: | Contact Us |
Packaging Details: | Wooden case |
Payment Terms: | TT, L/C |
Gravity conveyors are the most popular and simple method of conveying goods. Rollers are non-powered. Goods are moved and conveyed by gravity or human force. It is usually arranged horizontally or declined.
Horizontal Arrangement:
The goods are moved by human force. Suitable for the conveying of light weight products, short distances and infrequent work.
Declined Arrangement:
The goods are conveyed in the decline direction by gravity force. Increasing the weight of the goods and the angle of the decline increases the speed of the goods.
※ Steel sprocket and tube full-circle welding
※ High strength, large transfer torque
※ Steel bearing housing design, beautiful, quiet
※ Adjustable guide flange to ensure linear transmission and positioning
Remarks:
Suitable for -20℃ ~ +80℃ environment
It is high strength, large transfer torque and meet the requirements for heavy duty transportation.
Pipe diameter and wall thickness | Bearing | Axis center | Chain wheel | Roller material | |||
Galvanizing of carbon steel | Stainless | ||||||
φ50*1.5 | 6001/6002 | φ12/15 | 08B11T/08B14T | √ | √ | ||
φ50*2.0 | 6001/6002 | φ12/15 | 08B11T/08B14T | √ | |||
φ60*2.0 | 6001/6002 | φ12/15 | 08B14T | √ | √ | ||
φ60*3.0 | 6002 | φ15 | 08B14T | √ | |||
φ76*3.0 | 6202/6204 | φ15/20 | 10A13T | √ | √ | ||
φ76*4.0 | 6204 | φ20 | 10A13T | √ | |||
φ80*3.0 | 6204 | φ20 | 10A15T | √ | |||
φ89*3.0 | 6204 | φ20 | 10A15T | √ | |||
φ89*4.0 | 6204 | φ20 | 10A15T | √ |
Flange welding size
Mode | D | DF | H |
Welding | φ60 | φ120 | 12 |
φ76 | φ135 | 16.5 | |
φ89 | φ150 | 18 | |
Locking | φ76 | φ138/φ195 | 23(aluminum) |
Double chain drive diagram
