Double Groove Belt Drive Conveyor Drum Roller For Conveying Cartons Packages And Small Components
  • name
  • name

Double Groove Belt Drive Conveyor Drum Roller For Conveying Cartons Packages And Small Components

Brand Name: Winroller
Model Number: Winroller Double Groove Belt Driven Conveyor Drum Roller
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Document:
Product Brochure PDF
Product Name:
Double Groove Belt Drive Conveyor Drum Roller
Drive Mode:
Double Groove Belt Driven
Application:
Suitable For Conveying Cartons Packages And Small Components
WidthPipe Diameter:
Φ50mm Φ60mm
Material:
Durable Steel Or Polymer
Customizable:
Adjustable Groove Positions
Protection:
End Caps Guard Against Dust And Water
Temperature Range::
-5℃ To +40℃
Noise Level:
Quiet Operation
Bearings:
Precision Ball Bearings For Smooth Operation
Supply Ability:
1000000/year
Highlight:

Double Groove Belt Drive Roller

,

Conveying Cartons Belt Drive Roller

,

Double Groove belt conveyor roller

Product Description

Double Groove Belt Drive Conveyor Drum Roller For Conveying Cartons Packages and Small Components

Features Overview of Double Groove Belt Drive Conveyor Drum Roller

  • Based on the design of A20 series
  • Simple structure, groove position can be customized
  • Standard anti-static design
  • Anti-rust, beautiful; Quiet
  • The "O" belt circumference is not limited, and the drum spacing is free

Remark:

  • Roll groove position: minimum to side: 35mm, minimum distance between two grooves: 30mm
  • The driving force and transmission efficiency are low, and the later maintenance is maximum



Application of Double Groove Belt Drive Conveyor Drum Roller

Material Handling: Efficient for conveying light to medium-duty materials such as cartons, packages, and small components.



Technical Parameters of Double Groove Belt Drive Conveyor Drum Roller

Double Groove Belt Drive Conveyor Drum Roller
Pipe diameter and wall thickness Bearing Axis center Roller material
Galvanizing of carbon steel Stainless
φ50*1.5 6002 11hex,φ12/15 √ √
φ60*2.0 6002 11hex,φ12/15 √ √


Double Groove Belt Drive Conveyor Drum Roller For Conveying Cartons Packages And Small Components

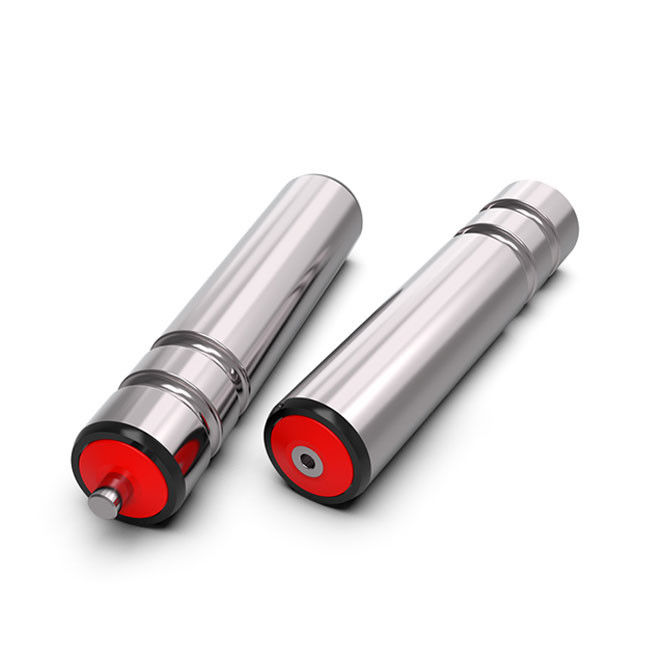

Feature Picture of Double Groove Belt Drive Conveyor Drum Roller

Double Groove Belt Drive Conveyor Drum Roller For Conveying Cartons Packages And Small ComponentsDouble Groove Belt Drive Conveyor Drum Roller For Conveying Cartons Packages And Small Components
