| Brand Name: | Winroller |
| Model Number: | Winroller Diameter 50mm DC Box-Type Conveyor Motor Drive Taper Roller |
| MOQ: | 1stick |
| Price: | Contact Us |
| Packaging Details: | Wooden case |
| Payment Terms: | TT, L/C |

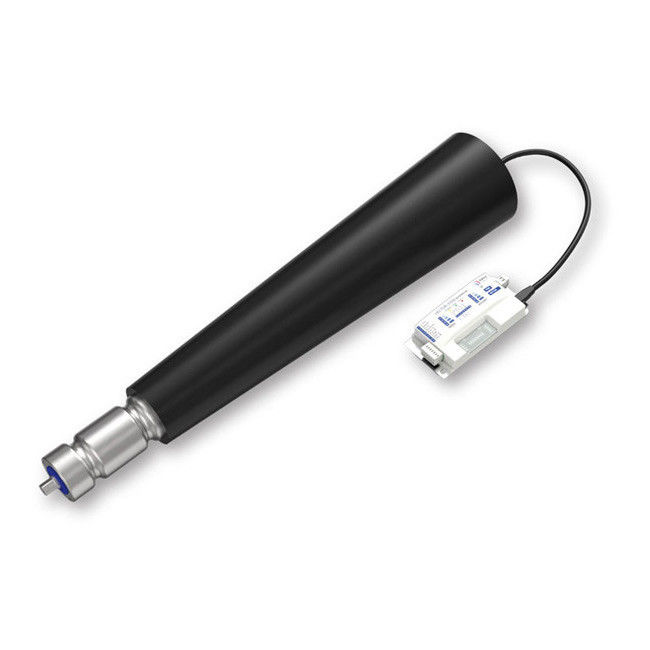

Motor Drive Taper Roller for Cone-Roller Type Zero-Discharge Curve Conveyor System: The cone-roller design with PVC soft adhesive guides items smoothly through curves with minimal friction, while the zero-discharge curve reduces material loss and ensures efficient handling in curved sections.
Motor Drive Taper Roller for Cone-Roller Type Zero-Discharge Curve Conveyor System: This high-performance, high-torque roller features a cone-roller design with PVC soft adhesive, ensuring smooth material handling through curves with minimal friction. The zero-discharge curve minimizes material loss and enhances efficiency in curved conveyor sections. Certified with CE, ROHS 2.0, and EMC, it is an energy-efficient, low-noise motorized roller. It is ideal for unit handling conveyor systems, automatic transmission systems, and transporting items such as cardboard boxes, material boxes, pressure plates, and tires. Suitable for linear conveyors, small belt conveyors, and zero-pressure accumulation conveyors, it can also be used in shuttle systems to connect conveyor sections or load shifters. With a diameter of 50 mm, IP54 protection, and a temperature range of -30°C to 60°C, it provides reliable performance across various industrial applications.
| Application | DC Motor Drive Taper Roller For Cone-Roller Type Zero-Discharge Curve Conveyor System | Voltage | DC24V, DC48V |
| Power | 40W, 50W, 80W,100W | Diameter | 50mm |
| Speed Range | 0.87-120m/min | Cylinder Material | PVC Soft Adhesive, Black Rubber, Polyurethane Adhesive |
| Maximum Load | 200Kg | Protection Class | IP57 |
