| Brand Name: | Winroller |
| Model Number: | Winroller DC48V Servo Brushless Hall Motor Sorting Drum Roller |
| MOQ: | 1stick |
| Price: | Contact Us |
| Packaging Details: | Wooden case |
| Payment Terms: | TT, L/C |

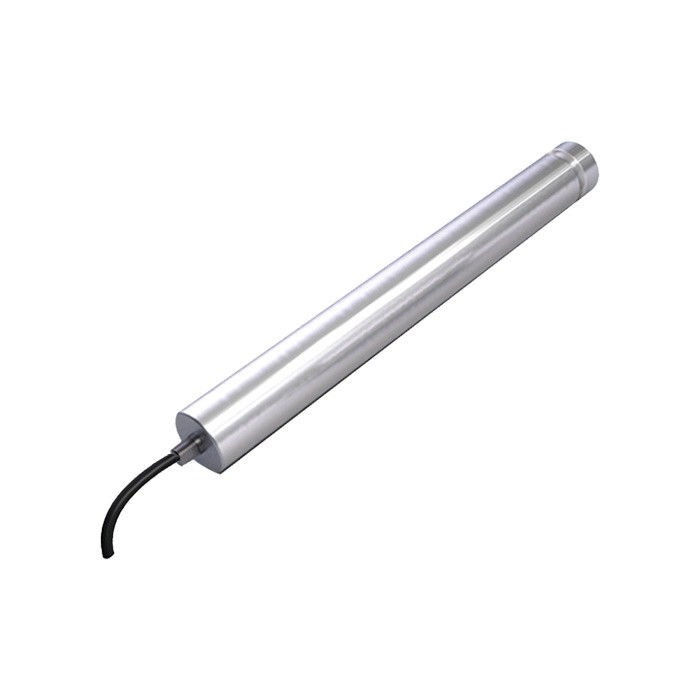

The DC48V Servo Brushless Hall Motor Sorting Drum Roller features high precision control, powerful performance, flexible speed range, robust and maintenance-free design, noise reduction, and versatility for various applications in logistics and food industries.
Precise Positioning: Utilizes an inductive encoder for accurate real-time position feedback, enabling precise control of motor operations.
Variable Speed Control: Allows adjustment of speed within a range of 1 to 3.5 m/s to meet specific application requirements.
High Torque Delivery: Capable of handling loads up to 35kg, ensuring efficient operation in demanding sorting tasks.
Rapid Response: Features quick response times (less than 0.05 seconds) for immediate operational adjustments.
Maintenance-Free Operation: Designed without internal electronic components, reducing maintenance needs and enhancing reliability.
Noise Reduction: The gearless design minimizes noise levels, making it suitable for noise-sensitive environments.
Environmental Resistance: Built to perform effectively in harsh conditions, including moisture and dust.
Versatile Application: Ideal for use in food packaging, logistics sorting, weighing systems, and crossbelt conveyors.
| Motor Type | Servo Brushless Hall Motor | Drum Outer | 67mm |
| Voltage | DC48V | Power | 300W |
| Peak Current | 14A | Load | 20kg, 35kg, 60kg |
| Drum Length | 428mm | Speed Range | 1-3.5M/S |
| Maximum Load | 35kg | Rated Speed | 300 to 1000 RPM |
| Application | Crossbelt sorting, weighing systems, and sorting carts | ||
| Project | Specifications | Explain |
| Motor Type | DC brushless motor(BL DC) | |
| Motor Type | Outer rotor motor | |
| Voltage | DC48V+-10% | |
| Number of poles | 10 | 5 pairs of poles |
| Rated power range | 400W | |
| Speed range | 300-762r/min | |
| Rated torque | 6N.m | |
| Instantaneous maximum torque | 18N.m | Not more than 4 seconds |
| Working system | Indirect working system 25% | Determined according to ambient temperature |
| Drive type | DC brushless servo driver | Explain |
| Input rated voltage | DC48V | |
| Driver rating | 400W | Intermittent working system 25% |
| Drive size | 155mm*147.1mm*42mm | |
| Communication modeA | rs485 | 38400bps,N,8,1 |
| Power interface | Plug42000-6P (5557) | nylon ( PA66 ) ,UL94V-2/0 |
| Terminal42000-21RT(5556) | Phosphor bronze (C5191) Wire gauge: 0.12~0.5mm2, 26~20AWG Outer diameter of wire: 1.1~1.9mm |
|
| communication interface | Plug42000-10P(5557) | Nylon (PA66), UL94V-2/0 |
| Terminal42000-01RT(5556) | Phosphor bronze (C5191) Wire gauge: 0.032~0.08mm2, 32~28AWG Outer diameter of wire: 0.5~1.0mm |
|
| Motor interface | Special interface | |
| Motor Hall interface | Special interface | |
| Operating ambient temperature | -20-+85℃ | |
| Operating ambient humidity | Less than 85% | No water drops and rain |
