Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg For Sorting Systems

Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg For Sorting Systems

Brand Name: Winroller
Model Number: Winroller Φ76 Lifting Cam Motor Drive Roller
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE, ROHS2.0, EMC, ISO9001
Product Name:
Lifting Cam Motor Drive Roller
Diameter:
76mm
Rated Voltage:
DC24V, 48V
Rated Power:
100W, 200W
Rated Current:
6A
Rated Torque:
2.58N·M~15.6N·M
Rated Speed:
89RPM
Lift Weight:
200kg
Sorting Efficiency:
2000 Pieces/hour
Linear Velocity:
12-132m/min
Supply Ability:
500000/year
Highlight:

Motor Drive Roller 200kg

,

89RPM Motor Drive Roller

,

89RPM motor conveyor roller

Product Description

Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg For Sorting Systems

Function of Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg

Lifting Cam Motor Drive Rollers are equipped with a powerful 100W motor, capable of lifting up to 200kg and achieving a sorting efficiency of 2000 pieces per hour. These features make them ideal for use in industrial production and automated packaging sorting systems, significantly enhancing system efficiency and reliability.



By welding eccentric wheels to both ends of the roller, it generates an up-and-down motion during rotation, effectively lifting and lowering goods. This ingenious design allows the roller to work seamlessly with conveyor rollers, achieving 90-degree turns in material handling.



Application of Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg

For loading pallets handling and AGVs/AMRs



Technical Parameters of Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg



Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg
Application Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg For loading pallets handling and AGVs/AMRs Rated Voltage DC24V ,48V
Rated Power 100W, 200W Diameter 50mm, 60mm, 76mm
Rated Current 6A Rated Torque 2.58N·M~15.6N·M
Rated Speed 89RPM Lift Weight 200kg
Sorting Efficiency 2000pieces/hour Linear Velocity 12-132m/min

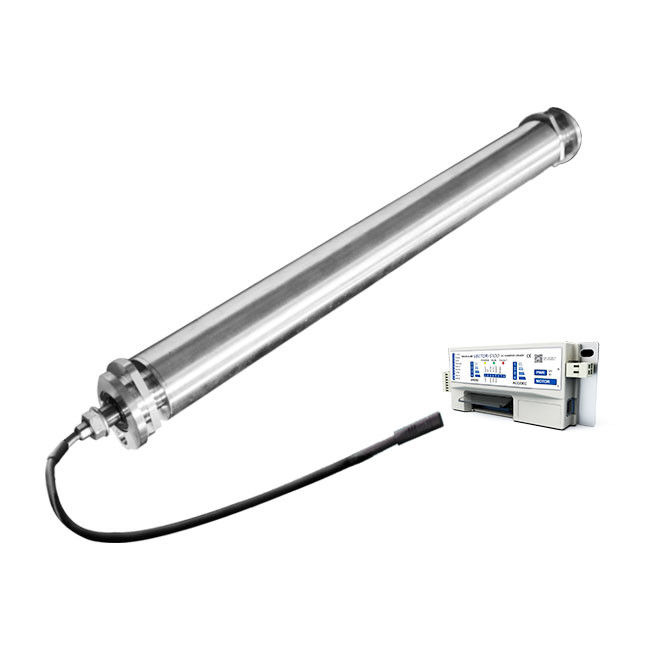

Feature Picture of Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg

Φ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg For Sorting SystemsΦ76 Lifting Cam Motor Drive Roller - Supports Up To 200kg For Sorting Systems
