Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon Sleeve

Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon Sleeve

Brand Name: Winroller
Model Number: Winroller Φ76 New Energy Motor Drive Roller 48V 300W Sprocket Motorized Roller
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Product Name:
Φ76 New Energy Motor Drive Roller 48V 300W Sprocket Motorized Roller
Diameter:
76mm
Voltage:
48V
Power:
300W
Linkage Mode:
Double Sprocket
Maximum Load:
3000kg
Motor Type:
Brushless DC Reduction Motor
Speed Range:
2.04 ~ 90 M/min
Tube Material:
304 Stainless Steel / Nylon Sleeve
Application:
Cement Industry, Ceramics Industry, Steel Industry
Supply Ability:
1000000/year
Highlight:

48V Motorized Conveyor Roller

,

Nylon Sleeve Motorized Conveyor Roller

,

Nylon Sleeve Motorized Drive Roller

Product Description

Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon Sleeve

Features Overview of Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller

The Roller is designed with the latest technology, offering a dual sprocket drive system and durable nylon sleeves for industries that demand the highest levels of precision and power, and a 300W motor core that delivers superb torque, making it the preferred solution for the most demanding applications in the cement, ceramics and steel industries



Function of Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller

  • Capable of driving pallets up to 3000 kg.
  • Speed range from 2.04 to 90 m/min for versatile operation.
  • Constructed from 304 stainless steel and nylon sleeves for high strength and resistance to corrosion.
  • Supports plug-and-play network control for easy operation.
  • Quick emergency stop function for safety.





Application of Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller

  1. Cement industry
  2. Ceramics industry
  3. Steel industry



Technical Parameters of Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller Roller



Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller
Diameter 76mm Voltage 48V
Power 300W Speed Range 2.04 ~ 90 m/min
Motor Type Brushless DC Reduction Motor Protection Level IP66, IP67
Tube Material 304 Stainless Steel / Nylon Sleeve Linkage Mode Dual Sprocket
Application Cement industry, ceramics industry, steel industry



Φ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon SleeveΦ76 High Torque Motor Drive Roller 48V 300W Double Sprocket Motorized Roller With Nylon Sleeve

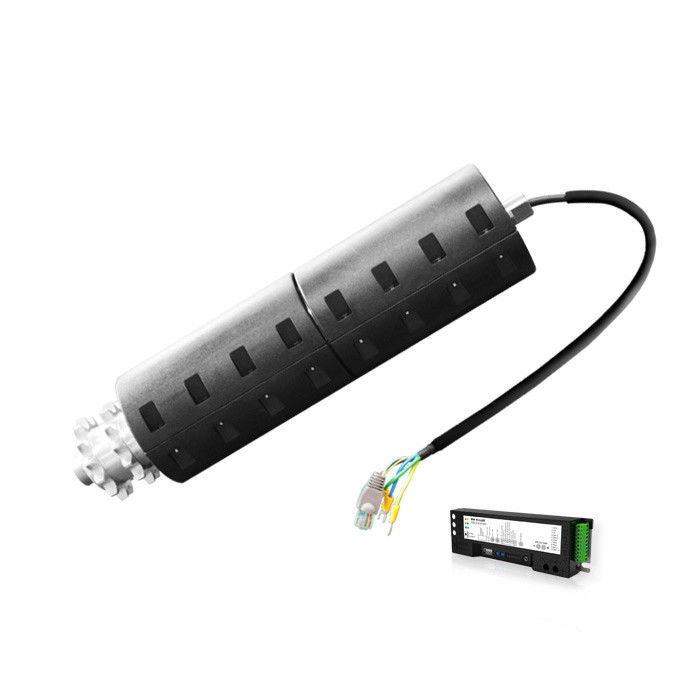

Feature Picture of Φ76 New Energy Motor Drive Roller 48V 300W Sprocket Motorized Roller
