Logistics Sort Roller
/

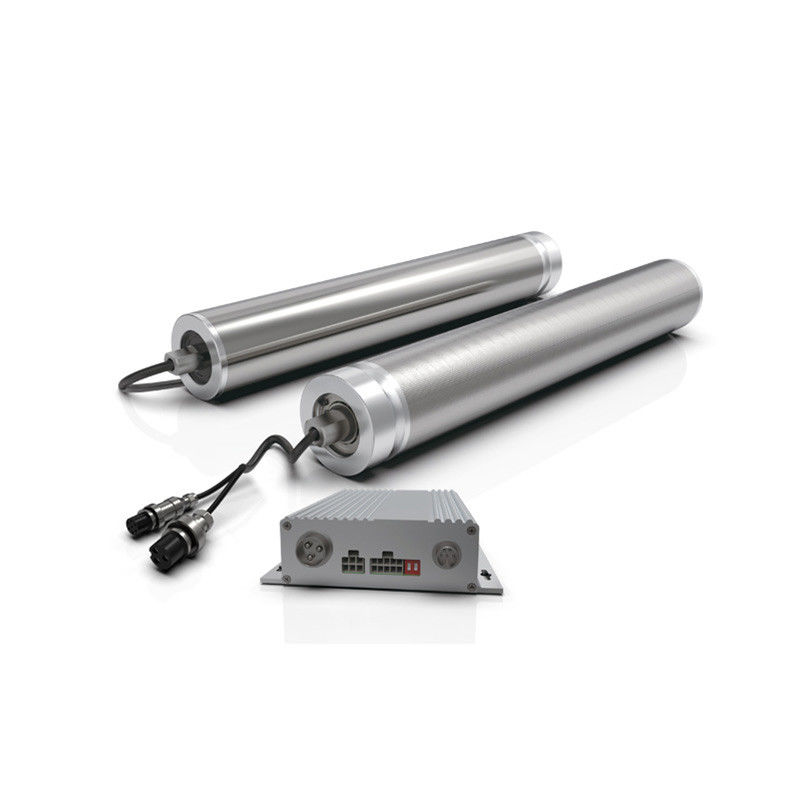

Ф67 400W/800W Direct Drive Sorting Roller For Cross Belt Weighing Sorting System

Ф67 400W/800W Direct Drive Sorting Roller For Cross Belt Weighing Sorting System

Brand Name: Winroller
Model Number: Winroller DDGD67 Direct Drive Sorting Roller
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE, ROHS2.0, EMC, ISO9001
Product Name:
Ф67 Direct Drive Sorting Roller
Diameter:
67mm
Voltage:
48V, 72V, 220V
Power:
300W, 400W, 800W
Motor Type:
Permanent Magnet Servo Motor
Load:
20kg, 35kg, 60kg
Length:
428L~1200L
Application:
Cross Belt, Weighing, Sorting Trolley
Supply Ability:
1000000/year
Highlight:

800W direct Drive Roller

,

400W direct Drive Roller

,

800W powered conveyor roller

Product Description

Ф67 400W/800W Direct Drive Sorting Roller For Cross Belt Weighing Sorting System

Function of Ф67 400W/800W Direct Drive Sorting Roller

  • Motor type: permanent magnet servo motor
  • Input voltage :48V/72V/220V
  • Rated power :300W/400W/800W
  • Length:428L~1200L
  • Outer diameter:φ67
  • Load:20kg/35kg/60kg
  • Application: cross belt, weighing, sorting trolley



Application of Ф67 400W/800W Direct Drive Sorting Roller

The DGDD67 direct drive drum motor provides an efficient, reliable and energy saving solution for crossbelt sortation systems with its outstanding performance and innovative technology. Whether in e-commerce logistics, courier sorting or industrial automation the DGDD67 is the ideal choice for improving sorting efficiency and reducing operating costs.



Technical Parameters of Ф67 400W/800W Direct Drive Sorting Roller



Ф67 400W/800W Direct Drive Sorting Roller
Application Ф67 Direct Drive Sorting Roller For Cross Belt Weighing Sorting System Diameter 67mm
Voltage 48V, 72V, 220V Power 300W, 400W, 800W
Motor Type Permanent Magnet Servo Motor Load 20kg, 35kg, 60kg
Length 428L~1200L Linear Velocity 1-3.5M/S
Rated Speed 350-1000rpm



Rotary transformer servo control, position sensor is inductive encoder, there is no electronic component in the electric roller, with strong environmental adaptability, no fear of electrostatic threat, and zero maintenance of equipment. 12-bit commercial A/D converter, 5-pole motor design, resolution up to 20480, and recognition down to 0.0176 degrees. High-precision position recognition, high-accuracy real-time control, and response speed as low as 0.05s. With excellent performance, our servo direct-drive electric roller is often used in industries with high hygiene requirements:

1. In the food packaging industry, it can provide clean and quiet operation without using oil and grease.
2. Industries requiring quick response and simple control, such as express industry. With freely selected conveying speed and instantaneous driving power of up to 1500w, it can perform the sorting role in the 1800 times/h cycle operation of the single packing table and the overall delivery of 20000 pieces/hour.
3. For occasions with high noise requirements, it provides a better solution for driving the conveyor with its unique gearless design.





Electric roller Motor parameters

Electric roller Motor parameters
Project Specifications Explain
Motor Type DC brushless motor(BL DC)
Motor Type Outer rotor motor
Voltage DC48V+-10%
Number of poles 10 5 pairs of poles
Rated power range 400W
Speed range 300-762r/min
Rated torque 6N.m
Instantaneous maximum torque 18N.m Not more than 4 seconds
Working system Indirect working system 25% Determined according to ambient temperature





Parameters of Electric Roller Driver

Parameters of Electric Roller Driver
Drive type DC brushless servo driver Explain
Input rated voltage DC48V
Driver rating 400W Intermittent working system 25%
Drive size 155mm*147.1mm*42mm
Communication modeA rs485 38400bps,N,8,1
Power interface Plug42000-6P (5557) nylon ( PA66 ) ,UL94V-2/0
Terminal42000-21RT(5556) Phosphor bronze (C5191)
Wire gauge: 0.12~0.5mm2, 26~20AWG
Outer diameter of wire: 1.1~1.9mm
communication interface Plug42000-10P(5557) Nylon (PA66), UL94V-2/0
Terminal42000-01RT(5556) Phosphor bronze (C5191)
Wire gauge: 0.032~0.08mm2, 32~28AWG
Outer diameter of wire: 0.5~1.0mm
Motor interface Special interface
Motor Hall interface Special interface
Operating ambient temperature -20-+85℃
Operating ambient humidity Less than 85% No water drops and rain



Feature Picture of Ф67 400W/800W Direct Drive Sorting Roller

Ф67 400W/800W Direct Drive Sorting Roller For Cross Belt Weighing Sorting SystemФ67 400W/800W Direct Drive Sorting Roller For Cross Belt Weighing Sorting SystemФ67 400W/800W Direct Drive Sorting Roller For Cross Belt Weighing Sorting System
