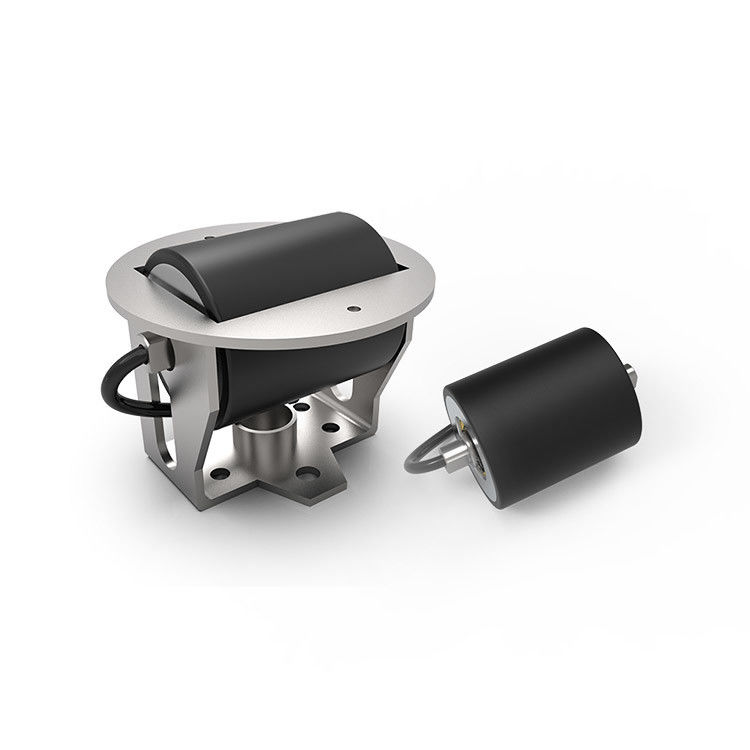

48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated For Pendulum Turbine And Balance Machine

Brand Name: Winroller
Model Number: Winroller 48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE, ROHS2.0, EMC, ISO9001
Document:
Product Brochure PDF
Product Name:
48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated
Product Diameter:
50mm, 67mm
Rated Voltage:
DC48V
Application:
Pendulum Turbine, Balance Machine
Rated Power:
50~100W
Drive Type:
1 Drag 24 Drives
Maximum Torque:
2N·M
Rated Torque::
1N·M
Rated Speed:
350-1000RPM
Drive Communication Mode:
RS485
Supply Ability:
1000000/year
Product Description

48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated For Pendulum Turbine And Balance Machine

Features Overview of 48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated

Rubber-Coated Swing Sort Wheel Gearless Motor Roller uses gearless technology to ensure smooth, reliable performance with ultra-fast response times of 0.1 seconds and impressive sorting efficiencies of up to 4,000 items per hour, even with loads up to 120kg.



Available in 50mm and 67mm diameters, the sorting wheels can be rubber-coated to increase friction, perfect for industrial automation and express logistics applications. Powered by a 48V supply, these rollers offer optimized performance and efficiency, making them a top choice for companies looking to boost operational productivity.



Function of 48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated

  • Available Diameters: Available in two sizes—50mm and 67mm—giving flexibility in design for different systems.
  • High Sorting Capacity: It can handle up to 4,000 items per hour, making it ideal for high-throughput environments like warehouses and distribution centers.
  • High Load Capacity: Can carry loads up to 120kg, ensuring robustness and versatility in demanding applications.
  • Rubber-Coated Surface: The rubber coating on the wheels increases friction, enhancing performance for applications requiring precise sorting and handling of items.
  • Voltage and Power: Powered by a 48V DC supply with a rated power range of 50-100W, making it energy-efficient.
  • Maintenance-Free Operation: The gearless design minimizes wear and tear, making this system maintenance-free.
  • Centralized Control: The system can be centrally controlled using an RS-485 communication bus, allowing for synchronized operations and easier integration with automation systems.



Application of 48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated

48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coatedperfect for industrial automation and express logistics applications

  • Automated Sorting Systems:Sorting parcels, packages, or products based on size, shape, or destination in high-speed sorting lines.
  • Express Logistics:Sorting parcels quickly and efficiently in logistics hubs, especially for express delivery services.
  • Packaging and Material Handling:Used in packaging lines to move products between different stages of production.



Technical Parameters of 48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated



48V Gearless Motor Swing Sort Wheel Roller With Rubber-Coated
Product Diameter 50mm, 67mm Rated Voltage DC48V
Rated Power 50~100W Drive Type 1 Drag 24 Drives
Maximum Torque 2N·M Rated Torque 1N·M
Rated Speed 350-1000RPM Drive Communication Mode RS485
Application Pendulum turbine, balance machine
