Logistics Sort Roller
/

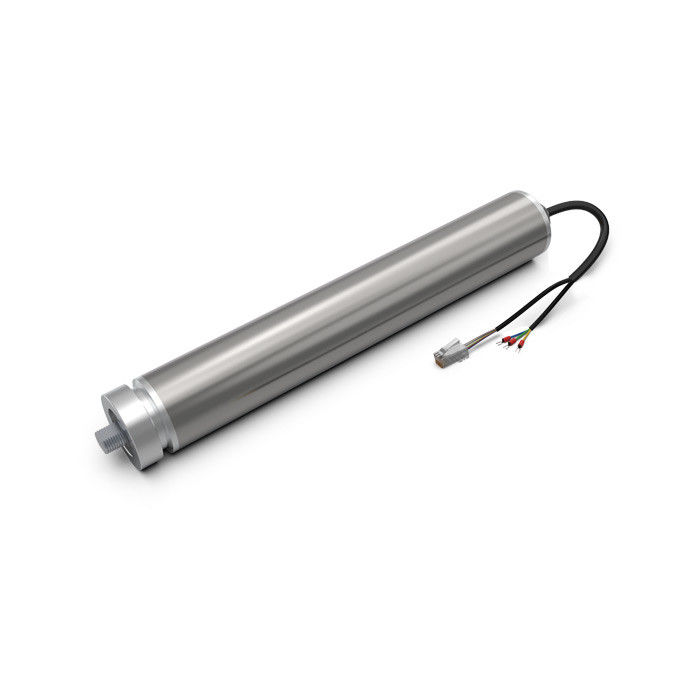

48V DC Brushless Motor Logistics Sort Roller With Load 60kg Speed 300 - 1000rpm For Belt Sorting Conveyor

48V DC Brushless Motor Logistics Sort Roller With Load 60kg Speed 300 - 1000rpm For Belt Sorting Conveyor

Brand Name: Winroller
Model Number: Winroller 48V DC Brushless Motor Logistics Sort Roller
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Product Name:
48V DC Brushless Motor Logistics Sort Roller
Motor Type:
DC Brushless Servo Motor
Rated Speed:
300 - 1000rpm
Rated Voltage:
DC48V
RatedPower:
400W
Roller Diameter:
50mm , 67mm , 91mm, 100mm
Linear Velocity:
1~3.5m/s
Cylinder Material:
Zinc Plating On Carbon Steel, Hard Chromium Plating On Carbon Steel
Application:
Cross Belt, Weighing, Sorting Trolley
Product Features:
Direct Drive, Dynamic Response, Energy Efficient, Precise Positioning
Supply Ability:
1000000/year
Highlight:

48VDC powered conveyor roller

,

powered conveyor roller Load 60kg

,

electric conveyor roller 1000rpm

Product Description

48V DC Brushless Motor Logistics Sort Roller With Load 60kg Speed 300 - 1000rpm For Belt Sorting Conveyor

Features Overview of 48V DC Brushless Motor Logistics Sort Roller

The 48V DC Brushless Motor Logistics Sort Roller utilizes advanced technologies such as direct drive systems for quick responsiveness, brushless motor design for improved efficiency and reduced maintenance, and high-precision control mechanisms for accurate sorting. Additionally, it often incorporates dynamic response capabilities and low-noise operation to enhance performance in logistics applications.



Function of 48V DC Brushless Motor Logistics Sort Roller

  • Direct Drive: Provides quick start-stop capabilities for efficient sorting.
  • Precise Control: Ensures accurate motor speed and positioning for optimal sorting performance.
  • Energy Efficiency: Reduces power consumption, lowering operational costs.
  • Low Maintenance: Gearless design minimizes maintenance requirements and downtime.
  • Dynamic Response: Achieves millisecond-level response times for rapid task handling.
  • Noise Reduction: Operates quietly, suitable for noise-sensitive environments.
  • High Load Capacity: Supports significant weights for reliable sorting under heavy loads.
  • Temperature Resilience: Functions effectively in low-temperature environments down to -30°C.



Application of 48V DC Brushless Motor Logistics Sort Roller

  1. E-commerce logistics
  2. Express industry
  3. Food industry
  4. Packaging industry





Technical Parameters of 48V DC Brushless Motor Logistics Sort Roller



48V DC Brushless Motor Logistics Sort Roller
Voltage DC48V Load Range 20kg/35kg/60kg
Cylinder Diameter 50mm , 67mm , 100mm Power 300W , 400W
Linear Velocity 1~3.5m/s Rated Speed 300 ~ 1000 r/min
Product Length 428L Product Features Direct drive, maintenance-free, high strength, dynamic response
Application Food industry , beverage industry , pharmaceutical industry




DC brushless motor parameters


Project Specifications Explain
Motor Type DC brushless hall motor
Motor Type Outer rotor motor
Rated Voltage DC48V +-10%
Peak Current 14A
Rated power 400W
Maximum Load 30Kg
Speed range 300 - 1000rpm
Linear Speed Range 1 - 35m/s
Working System S2 Peak torque operation
Insulation Class F



The motor is composed of permanent magnet rotor and winding stator. This kind of motor has the advantages of simple structure, high reliability, good stability, high efficiency and strong adaptability, so it has been widely used. Because the brushless motor cancels the carbon brush, the motor itself cannot run, and needs to rely on the external drive card to run. Hall sensor is installed inside the motor to feed back the position signal to the drive card.



DC brushless servo motor parameters


Project Specifications Explain
Motor Type DC brushless servo motor
Motor Type Outer rotor motor
Rated Voltage DC48V +-10%
Peak Current 14A
Rated power 400W
Maximum Load 30Kg
Speed range 300 - 1000rpm
Linear Speed Range 1 - 35m/s
Working System S2 Peak torque operation
Insulation Class F



The servo cylinder includes the cylinder shell, the cylinder shaft, the signal line, the permanent magnet brushless DC motor and the inductive encoder.



The inductive encoder includes the rotating module and the stator module. The rotating module rotates with the cylinder shell and interacts with the stator module to obtain the received signal. The high-precision position signal is calculated by the processing chip and transmitted to the motor control system, so as to accurately control the start and stop of the permanent magnet brushless DC motor Speed control and power density monitoring, etc.



The servo direct—drive electric roller described in this product has many advantages, such as compact structure, light weight, high position accuracy and large torque, and because the inductive position encoder adopts non-contact induction principle, itis suitable for working in various harsh environmental conditions, including wet, muddy and dusty working environment.
