Brand Name: | Winroller |

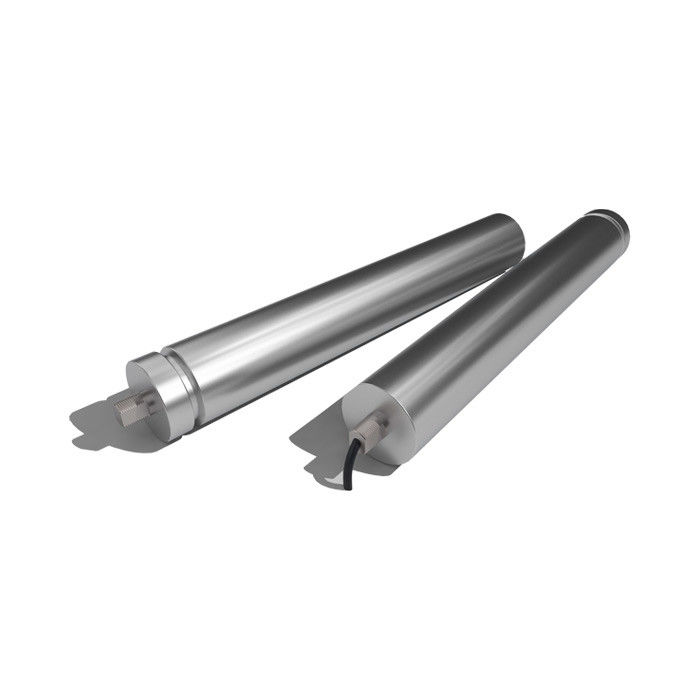

Model Number: | Winroller 48V 300W DC Gearless Motor Logistics Belt Conveyor Roller |
MOQ: | 1stick |
Price: | Contact Us |
Packaging Details: | Wooden case |
Payment Terms: | TT, L/C |
Designed for logistics sorting, this roller is precisely controlled by non-contact inductive encoders for powerful performance and quiet operation, enabling fast and efficient sorting for high volume handling.
Input Voltage | DC48V | Power | 300W |
Diameter | 50mm , 67mm | Maximum Load | 60kg |
Speed range | 350 ~ 1000 r/min | Insulation Class | F |
Drum Length | Customizable | Features | Compact, lightweight, high positional accuracy and high torque |
Application | Food industry, packaging industry, express industry, e-commerce industry |
Project | Specifications | Explain |
Motor Type | DC brushless motor(BL DC) | |
Motor Type | Outer rotor motor | |
Voltage | DC48V+-10% | |
Number of poles | 10 | 5 pairs of poles |
Rated power range | 400W | |
Speed range | 300-762r/min | |
Rated torque | 6N.m | |
Instantaneous maximum torque | 18N.m | Not more than 4 seconds |
Working system | Indirect working system 25% | Determined according to ambient temperature |
Drive type | DC brushless servo driver | Explain |
Input rated voltage | DC48V | |
Driver rating | 400W | Intermittent working system 25% |
Drive size | 155mm*147.1mm*42mm | |
Communication modeA | rs485 | 38400bps,N,8,1 |
Power interface | Plug42000-6P (5557) | nylon ( PA66 ) ,UL94V-2/0 |
Terminal42000-21RT(5556) | Phosphor bronze (C5191) Wire gauge: 0.12~0.5mm2, 26~20AWG Outer diameter of wire: 1.1~1.9mm | |
communication interface | Plug42000-10P(5557) | Nylon (PA66), UL94V-2/0 |
Terminal42000-01RT(5556) | Phosphor bronze (C5191) Wire gauge: 0.032~0.08mm2, 32~28AWG Outer diameter of wire: 0.5~1.0mm | |
Motor interface | Special interface | |
Motor Hall interface | Special interface | |
Operating ambient temperature | -20-+85℃ | |
Operating ambient humidity | Less than 85% | No water drops and rain |
