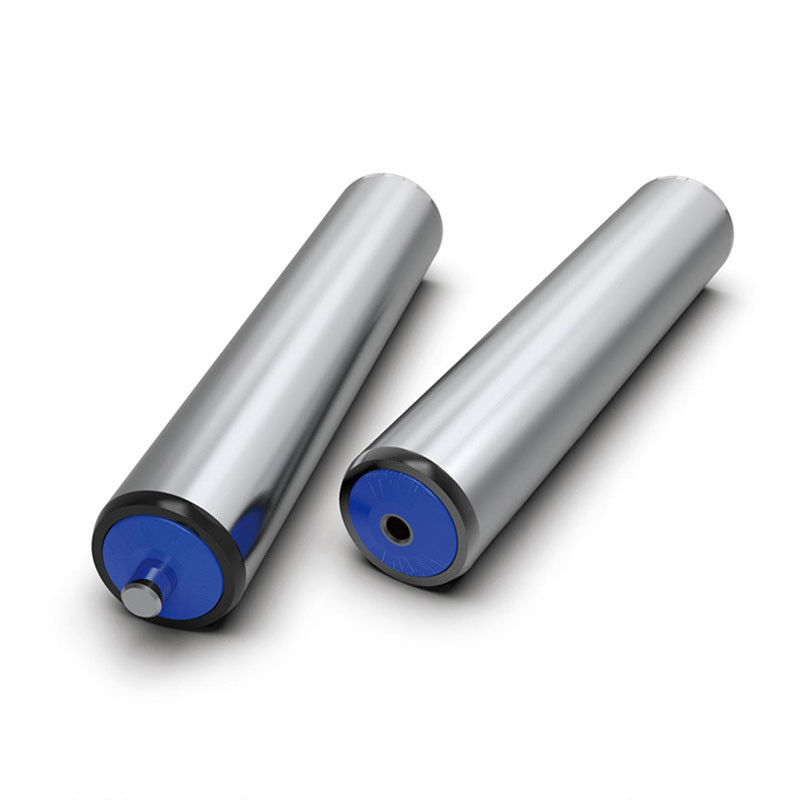

Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Brand Name: Winroller
Model Number: Winroller Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Product Name:
Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems
Cylinder Material:
Galvanised Steel | Stainless Steel | Aluminium | PVC
Bearing Material:
Plastics Bearing Housing
Working Temperature:
Normal Temperature (-5 ~ +40 ℃)
Pipe Diameter:
Φ25mm | Φ38mm | Φ50mm | Φ60mm Custom Diameter
Maximum Speed:
120m/min
Width:
400mm | 500mm | 600mm | 700mm | 800mm | Or Customized
Function:
Suitable For Cargo Roller Conveying
Supply Ability:
1000000/year
Highlight:

General Purpose Gravity Conveyor Roller

,

General Purpose Replacement Gravity Rollers

,

Custom Diameter Gravity Conveyor Roller

Product Description

Features Overview of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Gravity conveyors are the most popular and simple method of conveying goods. Rollers are non-powered. Goods are moved and conveyed by gravity or human force. It is usually arranged horizontally or declined.



Horizontal Arrangement:
The goods are moved by human force. Suitable for the conveying of light weight products, short distances and infrequent work.



Declined Arrangement:
The goods are conveyed in the decline direction by gravity force. Increasing the weight of the goods and the angle of the decline increases the speed of the goods.



Function of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

※ Precision bearings, plastic components (optional anti-static design)
※ Anti-rust, beautiful, quiet operation
※ The circular design for two ends of the drum makes the conveying more smooth
※ Maximum speed :120m/min
※ Working temperature: normal temperature (-5 ~ +40 ℃)
Please contact us if humidity out of this scope.



Remarks:
Cannot be used for belt conveyor tensioning rollers



Application of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

It is simplest and widely used product in the gravity roller series. It is commonly used in carton conveying applications.



Technical Parameters of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems
Pipe diameter and wall thickness Bearing Axis center Roller material
Galvanizing of carbon steel Stainless >Aluminium alloy PVC
φ25*1.2 Non-standard   φ8/10
φ38*1.2/1.5 6002 φ10/12g
φ50*1.5/2.0 6002 11hex,φ12/15
φ60*1.5/2.0 6002 11hex,φ12/15



Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems
