Stainless Non-Power Conveyor Idler Roller For Roller Conveyors

Stainless Non-Power Conveyor Idler Roller For Roller Conveyors

Brand Name: Winroller
Model Number: Winroller Stainless Non-Power Conveyor Idler Roller For Roller Conveyors
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Product Name:
Stainless Non-Power Conveyor Idler Roller For Roller Conveyors
Cylinder Material:
Stainless Steel
Function:
Roller Conveyors
Bearing Material:
Steel Bearing Housing
Working Temperature:
Normal Temperature (-20~ +80 ℃)
Pipe Diameter:
Φ38mm | Φ50mm | Φ60mm | Φ76mm | Φ80mm | Φ89mm | Custom Diameter
Antistatic Or Not:
Antistatic
Length:
Customized
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Overseas Third-party Support Available, Online Support, Overseas Service Center Available, Field Installation
Supply Ability:
500000/year
Highlight:

Customized Stainless Steel Gravity Rollers

,

Gravity Feed Conveyor Rollers Antistatic

,

Antistatic Stainless Steel Gravity Rollers

Product Description

Function of Stainless Non-Power Conveyor Idler Roller For Roller Conveyors

※ Precision bearings, integrated steel components
※ Rugged and completely anti-static
※ Full diameter series, large loading range
※ Working temperature: normal temperature (-20~+80 ℃)
Please contact us if humidity out of this scope.



Remarks:
Cannot be used for belt conveyor tensioning rollers



Application of Stainless Non-Power Conveyor Idler Roller For Roller Conveyors

It is simplest and widely used product in the gravity roller series. It is commonly used for general non-powered and downward roller conveyors and belt rollers.



Technical Parameters of Stainless Non-Power Conveyor Idler Roller For Roller Conveyors

Stainless Non-Power Conveyor Idler Roller For Roller Conveyors
Pipe diameter and wall thickness Bearing Axis center Roller material
Galvanizing of carbon steel Stainless Aluminium alloy
φ38*1.2/1.5 6001 φ12
φ50*1.5/2.0 6001/6002 φ12/15
φ60*2.0/3.0 6001/6002 φ12/15
φ76*3.0/4.0 6202/6204 φ15/20
φ80*3.0 6204 φ20
φ89*3.0/4.0 6204 φ20



Stainless Non-Power Conveyor Idler Roller For Roller Conveyors

Stainless Non-Power Conveyor Idler Roller For Roller Conveyors

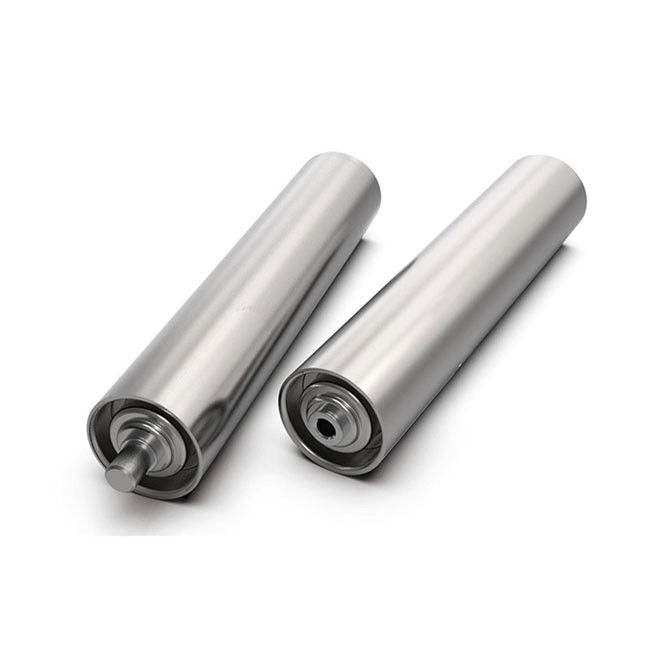

Feature Picture of Stainless Non-Power Conveyor Idler Roller For Roller Conveyors
