Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Brand Name: Winroller
Model Number: Winroller Plastic O Belt Tapered Conveyor Roller With High Load And Lower Noise
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Product Name:
Plastic O Belt Tapered Conveyor Roller With High Load And Lower Noise
Roller Material:
Steel Galvanization Stainless Steel
Linkage Mode:
O Belt
Small End Diameter:
Φ50mm
Vantage:
Low Noise And High Load
Taper:
Tube Standard Taper 3.6° (taper Can Be Customized)
Maximum Load:
200kg
Length:
Customized
Application:
For Curve Conveyor
Supply Ability:
500000/year
Highlight:

Tapered Conveyor Rollers Low Noise

,

Customizable Tapered Conveyor Rollers

,

Customizable belt conveyor roller

Product Description

Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Function of Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

  • "O" belt drive, groove at the end of the roller
  • The roller is light and has good starting performance
  • Suitable for light load conveying, smooth operation

Remark:
Both galvanized steel and stainless steel tube are available



Application of Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Used for cone-roller type zero-discharge curve conveyor line



Technical Parameters of Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Plastic O Belt Conveyor Pulley Driven Taper Roller
Pipe diameter and wall thickness Axis center Sleeve length D1 D2
φ50*1.5 11hex,φ12/15 300 φ56 φ74.9
350 φ52.9 φ74.9
400 φ56 φ81.1
450 φ52.9 φ81.1
500 φ56 φ87.4
550 φ52.9 φ87.4
600 φ56 φ93.7
650 φ52.9 φ93.7
700 φ56 φ100
750 φ52.9 φ100
800 φ56 φ106.3
850 φ52.9 φ106.3

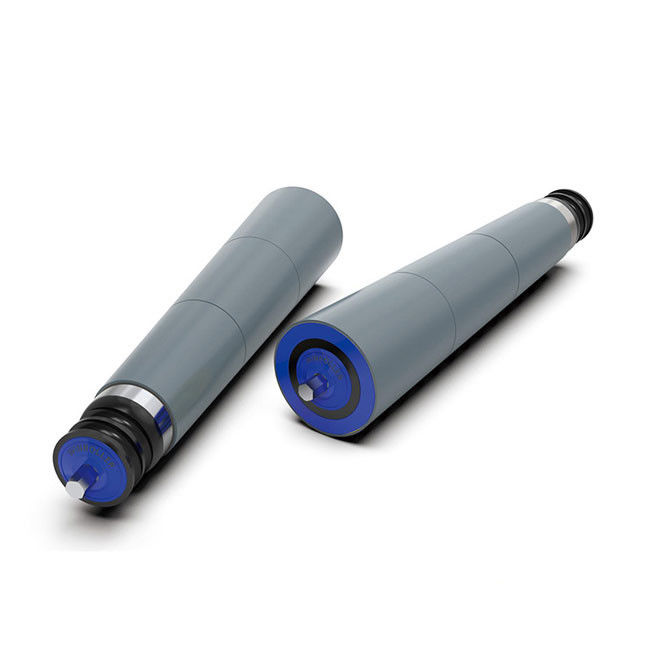

Feature Picture of Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Plastic O Belt Conveyor Pulley Driven Taper Roller For Various ApplicationsPlastic-O-Belt-Pulley-Driven-Taper-Roller-1
