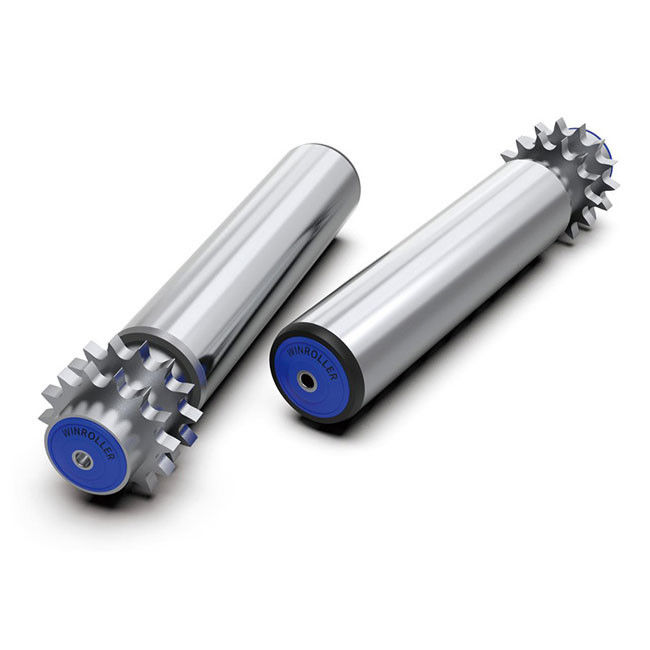

High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying

High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying

Brand Name: Winroller
Model Number: Winroller High Strength Steel Conveyor Roller With Double Sprocket
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Features:
Dustproof And Waterproof
Product Name:
High Strength Steel Conveyor Roller With Double Sprocket
Roller Material:
Galvanised Steel | Stainless Steel
Application:
For Heavy Load Conveying
WidthPipe Diameter:
Φ50mm, Φ60mm, Φ76mm
Length:
Customized
Working Temperature:
Normal Temperature (-5℃ ~ +40℃)
Certification:
ISO9001, CE
Supply Ability:
1000000/year
Highlight:

High Torque Double Sprocket Conveyor Roller

,

High Torque Heavy Duty Industrial Rollers

,

Dustproof Double Sprocket Conveyor Roller

Product Description

Features Overview of High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying

The power conveyor ensures that the goods are conveyed accurately, smoothly and reliably according to the specified speed. Chain drives have large load carrying capacity and strong environmental adaptability, and can work in situations where they are frequently exposed to oil, water and high temperatures. However, in dusty environments, chains are prone to wear. Cargo conveying speed usually does not exceed 30m/min.



Function of High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying

  • Steel sprocket and whole circle welding tube, high-strength
  • Large transmission torque, wide bearing range
  • Plastic bearing housing
  • Lighter, quieter operation



Remark:

  • Suitable for -5°C ~ +40°C environment



Application of High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying

It is high strength, large transfer torque  and meet the requirements for heavy duty transportation.



Technical Parameters of High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying

High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying

High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying
Pipe diameter and wall thickness Bearing Axis center Chain wheel A B C Roller material
Galvanizing of carbon steel Stainless
φ50*1.5/2.0 6002 φ12/15 08B14T 20 25 18.5
φ60*2.0 6002 φ12/15 08B14T 20 25 18.5
φ76*3.0 6204 φ120 10A13T 20 25 18.5





Double chain drive diagram

  • Double chain wheel drive drum
  • The structure is relatively simple
  • There is no need for a chain guide,have strict drum spacing — according to the pitch of the chain
  • The torque transfer time attenuation is large and the conveying distance is short
  • Double chain drive is suitable for heavy load conveying

High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying



model Pitch Suggested center distance T Tolerance
08B11T 12.7 69.8 82.5 95.2 107.9 120.6 0/-0.4
08B14T 12.7 88.9 101.6 114.3 127 139.7 0/-0.4
10A13T 15.875 119 134.9 150.8 166.6 182.5 0/-0.7
10A15T 15.875 134.9 150.8 166.6 182.5 198.4 0/-0.7



Single chain wheel drive drum:

  • Need chain guide devic
  • There is no strict limit on the distance between drums
  • High efficiency, long conveying length (usually 9 ~ 12 meters)
  • Single chain conveying is suitable for light and medium load



Feature Picture of High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying

High Strength Steel Conveyor Roller With Double Sprocket For Heavy Load ConveyingHigh Strength Steel Conveyor Roller With Double Sprocket For Heavy Load ConveyingHigh Strength Steel Conveyor Roller With Double Sprocket For Heavy Load Conveying
