Motor Drive Roller
/

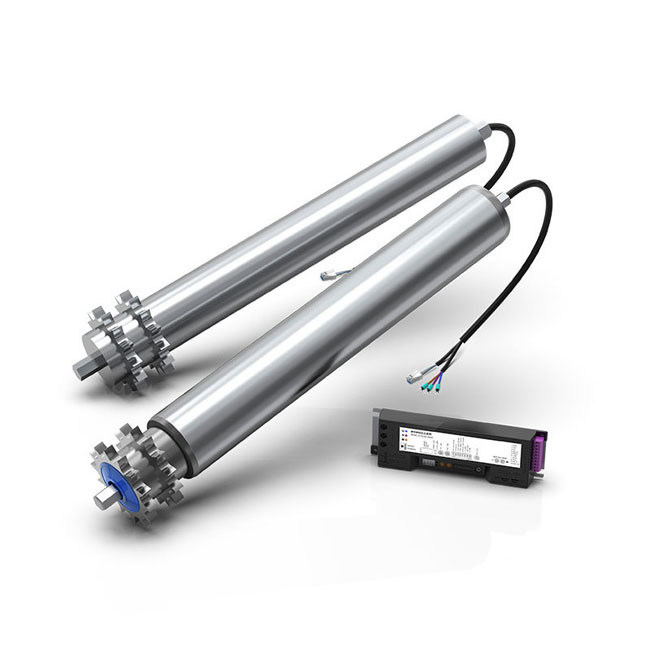

Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm

Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm

Brand Name: Winroller
Model Number: Winroller Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE, ROHS2.0, EMC, ISO9001
Product Name:
Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm
Diameter:
76mm
Maximum Load:
3000kg
Voltage:
24V, 48V
Power:
100W, 200W, 300W
Type:
DC Brushless Gear Deceleration Motor Drum
Protection Level:
IP66, IP67
Cylinder Material:
Carbon Steel
Ambient Temperature:
-5C~+40℃
Ambient Humidity:
30~90%RH(No Condensation)
Supply Ability:
500000/year
Highlight:

3000kg Load Pallet Conveyor Roller

,

Pallet Conveyor Roller 76mm

,

3000kg Load heavy conveyor roller

Product Description

Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm

Function of Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm

  • Diameter 76mm pallets drive motor rollers
  • The interior integrates a robust multi-stage planetary gear
  • Compact structure, good sealing
  • Increase the load capacity with a high torque
  • Output torque 100W/200W/300W, maximum load can reach 3 tons
  • RS485 I/O communication



Application of Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm

Used in long roller conveyor lines or in environments with heavy loads, such as food processing, medical production, electronic assembly, airport logistics, postal services, distribution and various industries, etc.



Technical Parameters of Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm



Φ76 Heavy Pallets Sprocket Drive Motor Roller Conveyor Line
Application Ф76 Heavy pallets sprocket drive motor roller conveyor Line Drum for Heavy Pallets Conveyor Line Voltage 24V, 48V
Power 100W, 200W, 300W Diameter 76mm
Type DC brushless gear deceleration motor drum Protection Level IP66, IP67
Maximum Load 3000kg Cylinder Material Carbon Steel
Ambient Temperature -5C~+40℃ Ambient Humidity 30~90%RH(No condensation)



Heavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mmHeavy Pallets Sprocket Drive Motor Roller Conveyor Line Drum Diameter 76mm
