Motor Roller Driver
/
H100 ZPA Bus Controller Based On Industrial Ethernet Bus Protocol

H100 ZPA Bus Controller Based On Industrial Ethernet Bus Protocol

Brand Name: Winroller
Model Number: Winroller H100 ZPA Bus Controller
MOQ: 1
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE, ROHS2.0, EMC, ISO9001
Product Name:

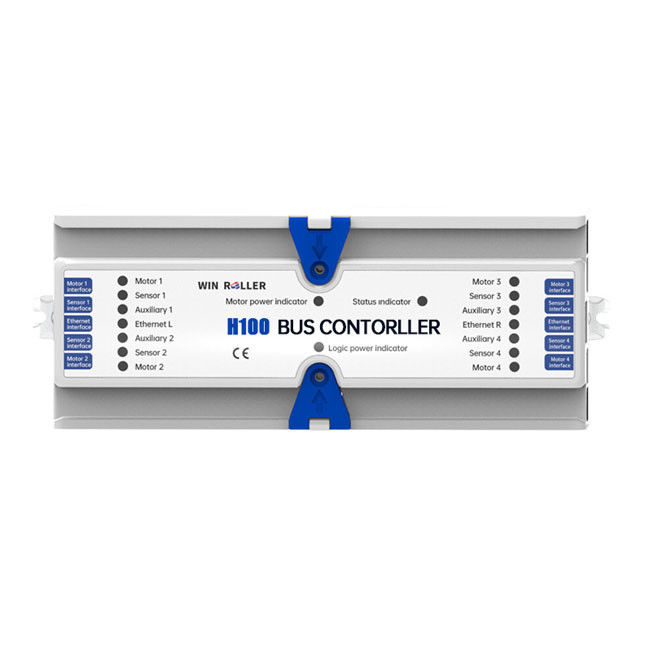

H100 ZPA Bus Controller
Power Supply:
48/24VDC
Logic Power:
24VDC
Quiescent Current:
0.15A
Peak Current:
20A < 1ms (Each Motor)
LED Indication:
Power Supply Polarity Reverse Protection, Overvoltage And Undervoltage Protection
Over Temperature Protection:
Control Card 90°C, Motor 105°C
Power Interface:
ASI Standard Flat Wire Puncture
Motor Interface:
WinRoller Dedicated Interface
Sensor Interface:
Spring-loaded 4-pin Male Header
Supply Ability:
1000000/year
Highlight:

roller drive motor 24VDC

,

conveyor lines roller drive motor

,

Roller conveyor driver for Conveyor Lines

Product Description

H100 ZPA Bus Controller Based On Industrial Ethernet Bus Protocol

Features Overview of H100 ZPA Bus Controller Based On Industrial Ethernet Bus Protocol

  • H100 bus controller, aiming at the requirements of high-speed operation, real-time control and multi-scenario application of conveyor lines, integrates automatic generation of conveyor
  • line topology and zero pressure product between sections by using edge control algorithm, bus communication and Internet of Things technology. Functions such as playback (ZPA) and one-click parameter configuration greatly shorten on-site debugging time.
  • The spring-type sensor interface is used, and the power cord adopts puncture access method to facilitate on-site installation and implementation.
  • The industrial Ethernet bus can transmit various motor operation and system status data, providing basic guarantee for value-added services such as statistical analysis and predictable equipment maintenance.



Motor drive and control based on industrial Ethernet bus protocol

  • Support protocols such as Profinet I/O, Ethernet I/P, CC-Link IEF Basic and Modbus TCP
  • 4-way motor drive and control
  • channel photoelectric sensor (can be expanded to 8 channels)
  • A total of 4 custom IO channels, which can be used to connect buttons, alarm lights or PLC, etc.
  • Built-in ZPA control logic
  • 48V/24V power supply and 24V logic power supply ASI flat line puncture access
  • 4-pin sensor interface
  • WIN motor dedicated interface
  • Sensor NPN/PNP automatic identification
  • RJ45 Ethernet interface
  • Configure parameters via Ethernet or Bluetooth
  • The system can be set up independently or connected to the PLC control system



Technical Parameters of H100 ZPA Bus Controller Based On Industrial Ethernet Bus Protocol



H100 Bus Controller
Power Supply Rated Voltage Power Supply: 48/24VDC
Logic Power: 24VDC
Quiescent Current 0.15A
Peak Current 20A < 1ms (Each motor)
LED Indication Motor, sensor, power supply, network, status
Power Protection Power supply polarity reverse protection, overvoltage and undervoltage protection
Over temperature protection Control card 90°C, motor 105°C
Power interface ASI standard flat wire puncture
Motor interface WinRoller dedicated interface
sensor interface Spring-loaded 4—pin male header
Network Interface RJ45
Condition Ambient Temperature -20 to 40℃
Environment Humidity ≤90% relative humidity (no condensation)
Gas Conditions No corrosive gas
Vibration Amplitude ≤1.0G



Applicable motor DGBL60 series
Applicable sensors PNP/NPN type diffuse reflection, specular reflection
Applicable power cord AS-Interface flat cable
