Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler For Conveyor

Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler For Conveyor

Brand Name: Winroller
Model Number: Winroller Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler
MOQ: 1stick
Price: Contact Us
Packaging Details: Wooden case
Payment Terms: TT, L/C
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,SGS,ISO9001,ROHS,UL
Product Name:
Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler
Cylinder Material:
Galvanised Steel, Stainless Steel
Working Temperature:
Normal Temperature (-5 ~ +40 ℃)
Pipe Diameter:
Φ50mm, Φ60mm
Applicable Humidity:
RH≥30%
Length:
Customized
Function:
Light And Medium-sized Material Conveying
Mounting Hole Range:
11.2~11.7mm
Maximum Speed:
2~3m/s
Condition:
New
Supply Ability:
1000000/year
Highlight:

Galvanised Steel Conveyor Roller

,

Customized Width Steel Conveyor Roller

,

Assembly Line Roller Customized Width

Product Description

Features Overview of Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler

Gravity conveyors are the most popular and simple method of conveying goods. Rollers are non-powered. Goods are moved and conveyed by gravity or human force. It is usually arranged horizontally or declined.



Horizontal Arrangement:
The goods are moved by human force. Suitable for the conveying of light weight products, short distances and infrequent work.



Declined Arrangement:
The goods are conveyed in the decline direction by gravity force. Increasing the weight of the goods and the angle of the decline increases the speed of the goods.



Function of Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler

※ Compact structure, no tension, simple design

※ T5 tooth shape design for roller transport, higher versatility

※ Accurate positioning, with the use of electric roller, to meet the application requirements of load shifting section

※ Used with PU synchronous belt, suitable for harsh environment such as clean room

※ Does not require any lubrication, easy maintenance



Remarks:
φ50/60 tube can be coated with 2mm PVC soft sleeve.
The roller spacing is selected according to a fixed value, and the pulley driving part needs to be protected



Application of Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler

It is simplest and widely used product in the gravity roller series. It is commonly used in carton conveying applications.



Technical Parameters of Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler

Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler
Pipe diameter and wall thickness Bearing Axis center Roller material
Galvanizing of carbon steel Stainless
φ50*1.5 6002 11hex,φ12/15
φ60*2.0 6002 11hex,φ12/15



Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler

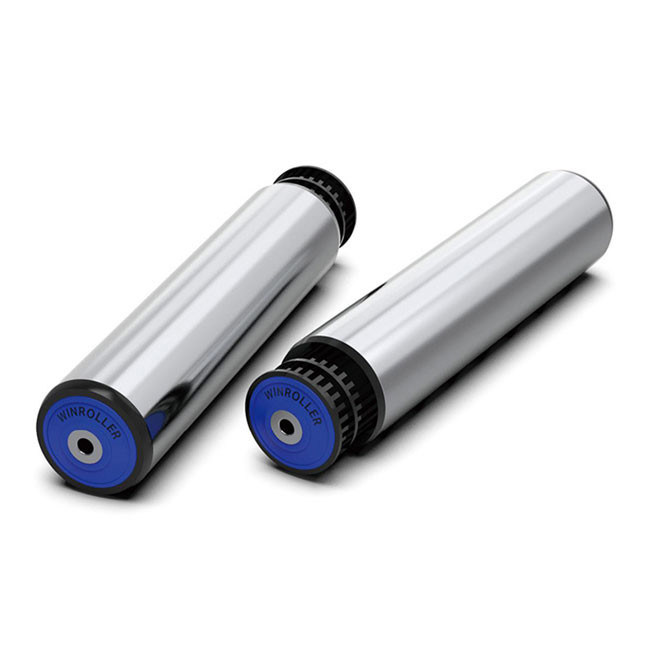

Feature Picture of Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley Idler

Galvanised Steel Conveyor Roller Polymer Synchronous Belt Pulley IdlerGalvanised Steel Polymer Synchronous Belt Pulley Idler For Assembly Lines Polymer Timing Belt Conveyer Roller
